Specifications

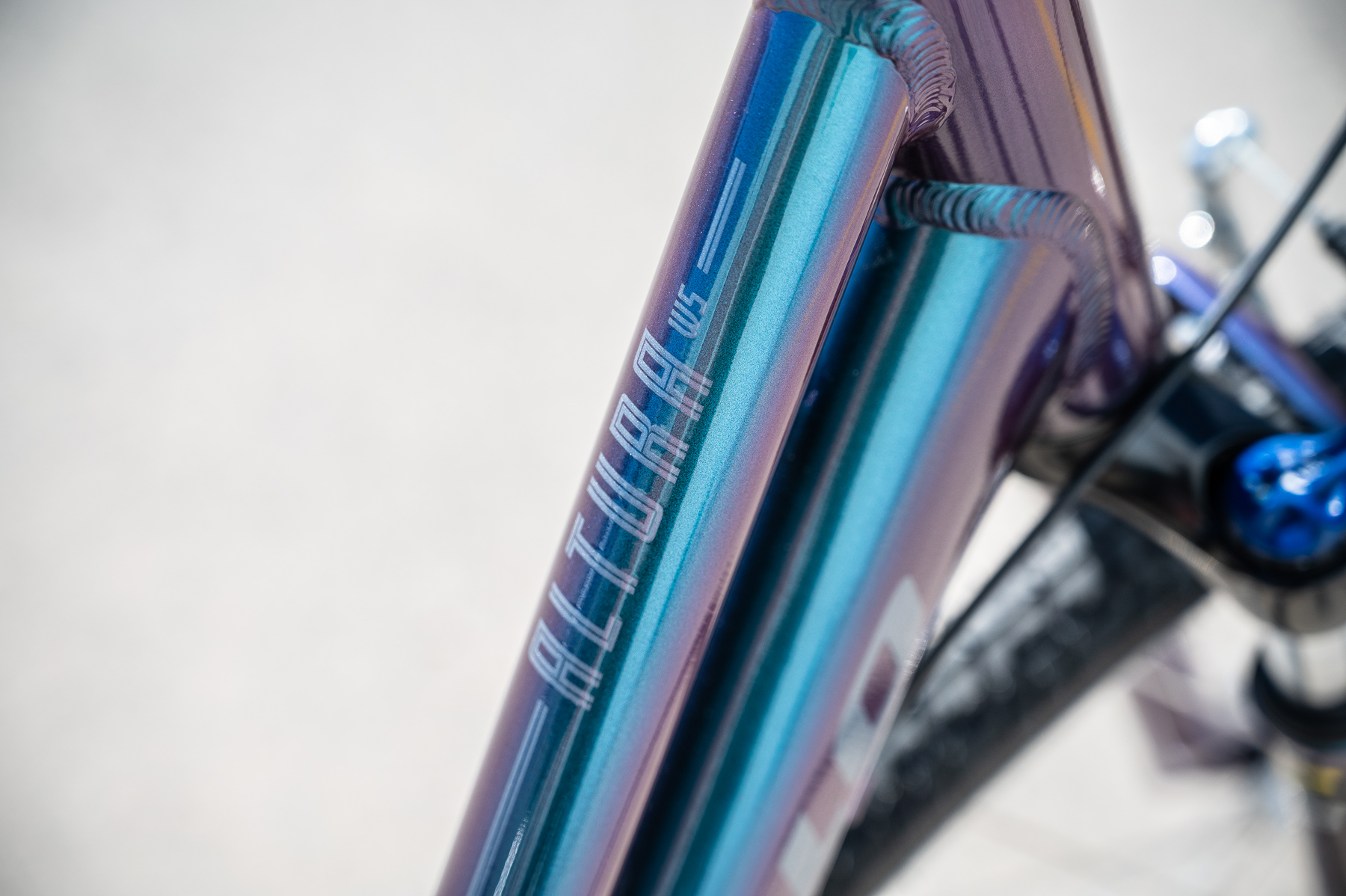

FRAME
6061 butted alloy women's step through "Comfort zone" geometry frame with optimised low step through clearance

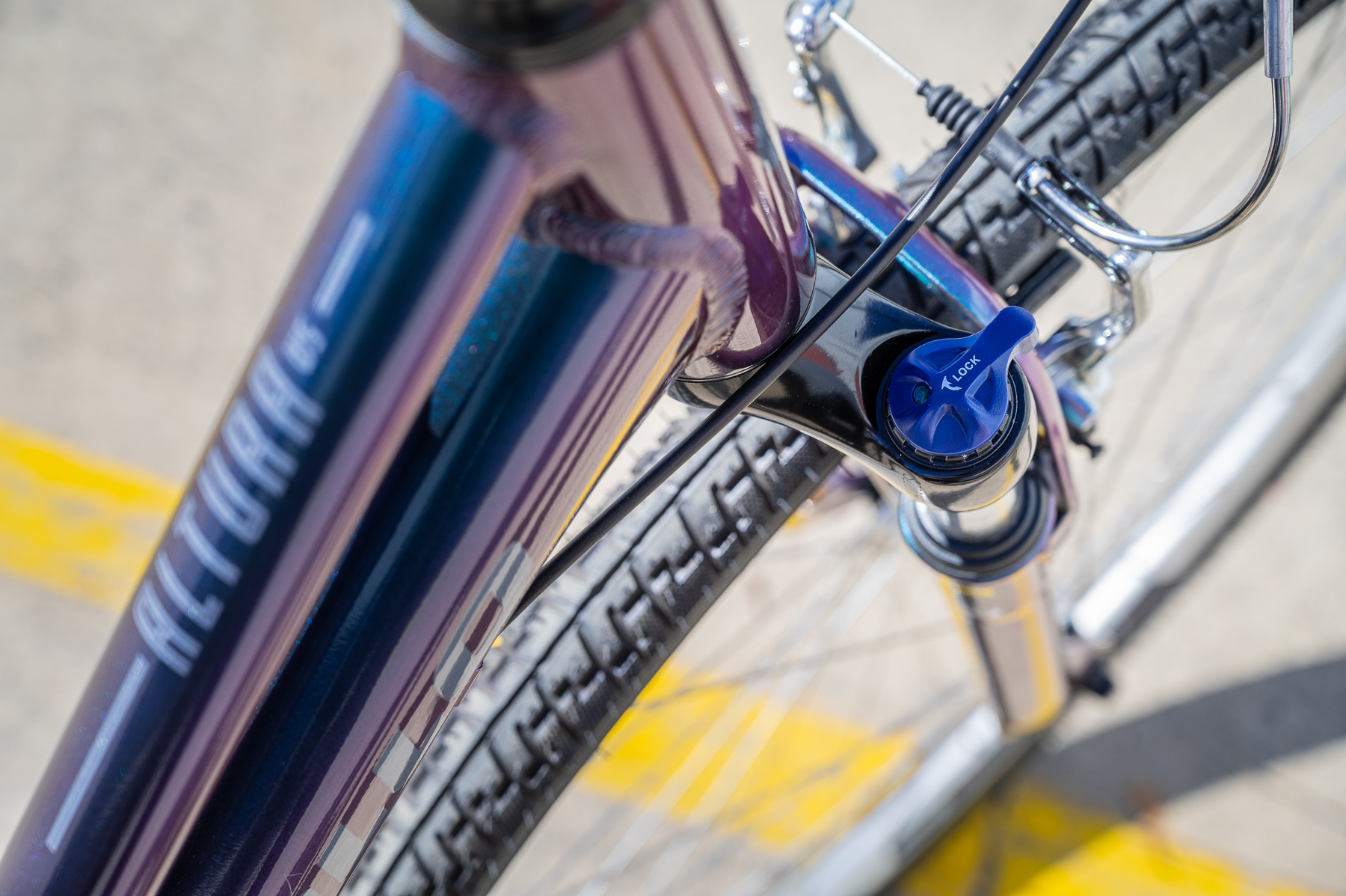

FORK
Apollo suspension fork with 30mm travel with preload and lockout. Alloy crown and lowers.
HEADSET
Threaded semi-sealed 1-1/8"

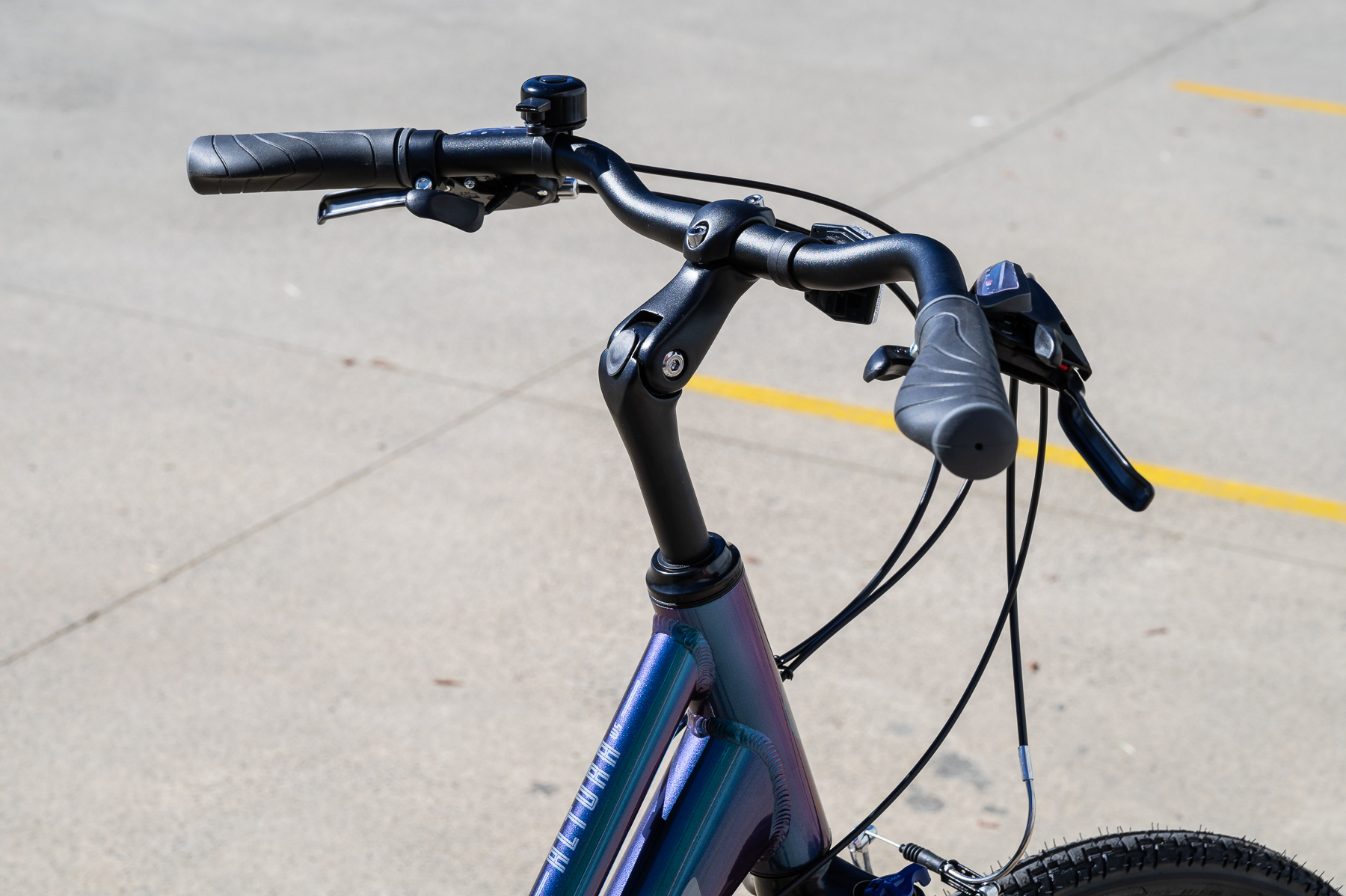

HANDLEBAR
Alloy comfort bars, R: 66mm, W: 610mm, Sweep 43°
GRIP
Kraton gel dual density comfort grip
HEADSTEM
Alloy adjustable quill stem

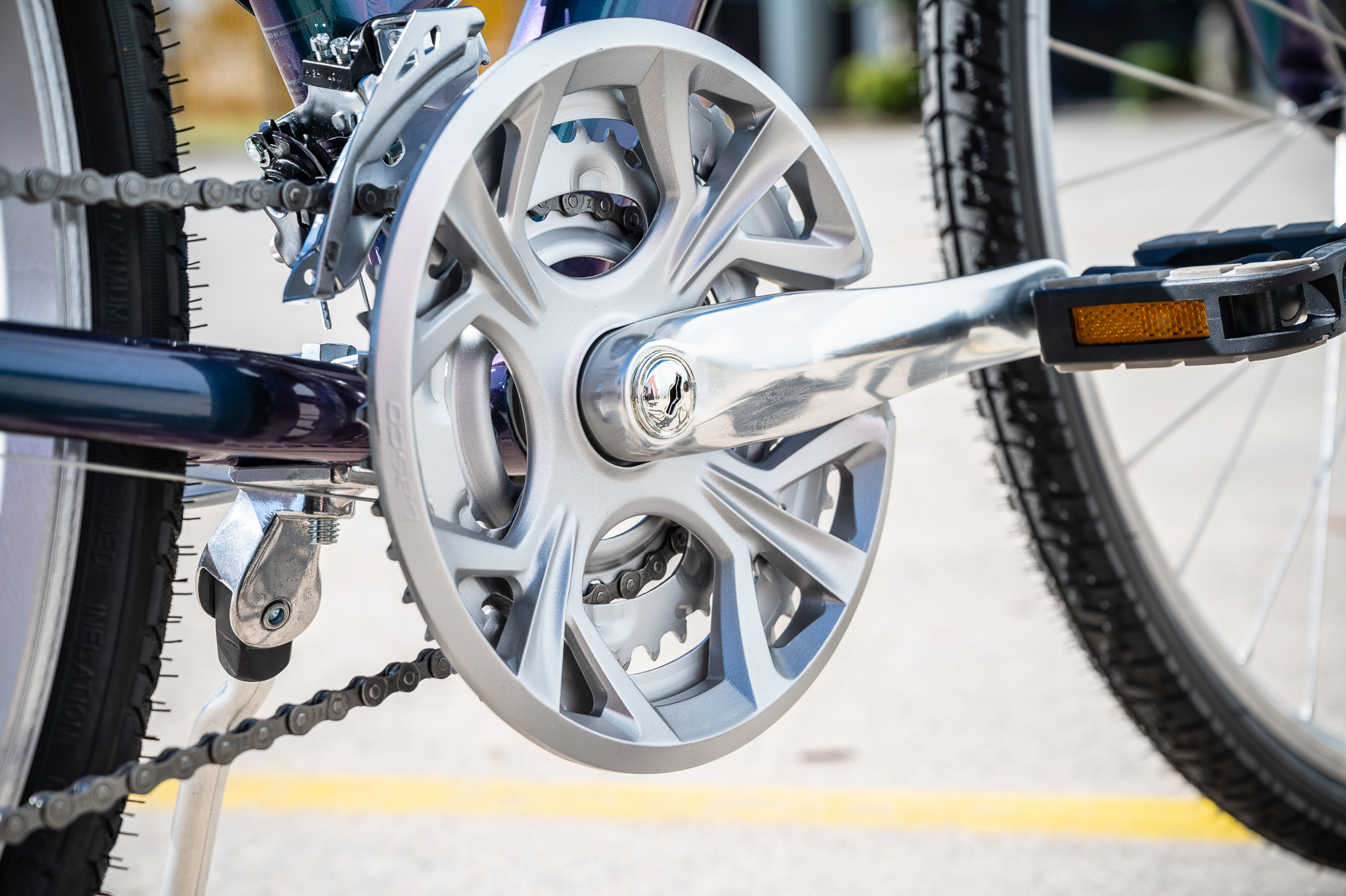

CRANKSET
Alloy crank with 48 x 38 x 28T L: 170mm
BOTTOM BRACKET
Cartridge bottom bracket
PEDALS
TPR two tone non-slip
FRONT DERAILLEUR
Shimano TX-51 top pull for 31.8mm
REAR DERAILLEUR
Shimano RD-TX800
SHIFT LEVERS
Shimano EF-500 Ez Fire 24 speed
CASSETTE
Shimano 8 speed cassette 12-32T
CHAIN
KMC Z-7
BRAKES
Alloy linear pull brakes
WHEELS
700c Weinmann X-M1 double wall alloy rims. 32 hole A/V, alloy quick release front and nutted rear hubs. Stainless spokes
TYRES
Kenda 700 x 38c wire bead
SADDLE
Apollo Comfortech women's specific
SEATPOST / CLAMP
Alloy suspension post with new improved elastomer, 27.2mm
EXTRAS
Alloy kickstand
Specifications are subject to change at any time and without notice.
Geometry
| XS | S | M | |
|---|---|---|---|
| Frame Size | 14" | 16.5" | 19" |
| A – Stack | 637 | 637 | 655 |
| B – Reach | 320 | 330 | 342 |
| C – Stand Over Height | 303 | 297 | 300 |
| D – Effective Top Tube Length | 590 | 600 | 620 |
| E – Seat Tube (Centre to Top) | 360 | 420 | 480 |
| F – Seat Angle | 67° | 67° | 67° |
| G – Head Tube Length | 170 | 170 | 190 |
| H – Head Angle | 68° | 68° | 68° |
| I – Wheel Base | 1080 | 1070 | 1090 |
| J – Chain Stay Length | 485 | 465 | 465 |
| K – BB Drop | 70 | 70 | 70 |
| L – Fork Rake | 48 | 48 | 48 |
| M – Axle to Crown | 450 | 450 | 450 |
| Rear Dropout Spacing | 135 | 135 | 135 |
| Approx. Rider Height | 152 - 163cm 5'0" - 5'4" |
160 - 170cm 5'3" - 5'7" |
168 - 175cm 5'6" - 5'9" |
| text | Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend visiting your local Apollo Dealer. Sizing availability may vary between countries. |
